404 Layers

A trainer for the Roland SP-404MK2's button combinations, built as a sideloaded Android app.

The SP-404MK2 has 54 controls and roughly 160 functions. The difference is hidden behind modifiers: hold SHIFT and the pads stop being pads and become FIXED VELOCITY, 16 VELOCITY, CUE, CHROMATIC, and so on. Hold REMAIN and they become bus routing. The same physical key does something different in sample mode, pattern mode, TR-REC, the looper, DJ mode and chromatic mode.

This app draws the panel, lets you hold a modifier, and relabels every control with what it does on that layer. Then it drills you on them.

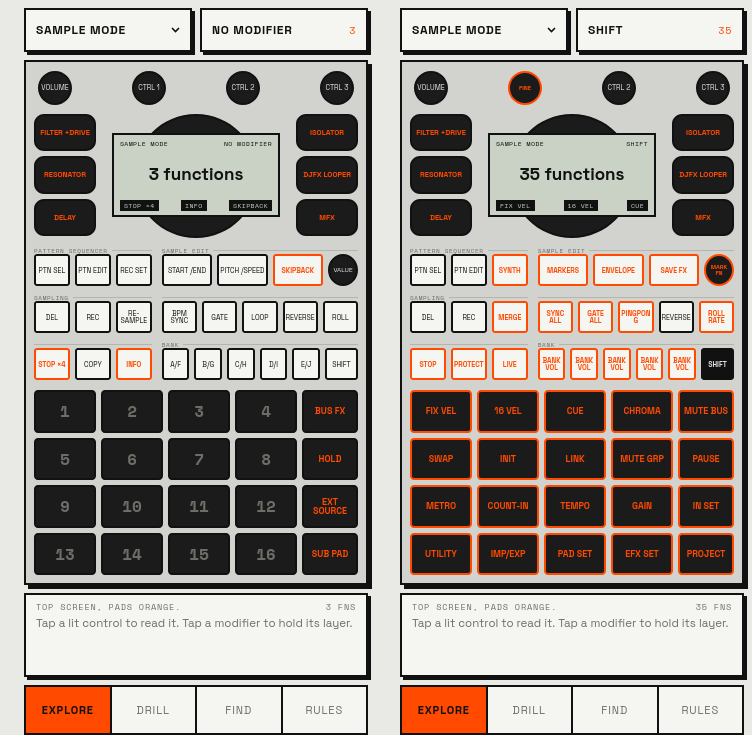

Left: sample mode, nothing held — three functions available. Right: the same screen with SHIFT held — thirty-five, and every pad now shows what it becomes.

What it does

Tab
Explore	Hold or tap a modifier; the panel relabels itself. Tap a lit control to read what it does, where it applies, and its page in the manual.
Drill	Spaced repetition over the combos. Either "here's a function, press it" — answered by holding the actual chord on the panel — or "here's a combo, name it".
Find	Search by function, by button, or by mode. Pick a result and it opens on the panel, lit.
Rules	The nine patterns behind the combos, so you can stop memorising 160 things and learn the handful of rules they follow.

Drill uses a five-box Leitner system. A right answer promotes a card, a wrong one sends it back to box one, and the chance of being asked halves with each box — so the combos you keep missing keep coming back. Progress is kept on the device.

Status

It works and it's in daily use on one phone. It is not on any app store: it's a debug-signed APK, sideloaded over adb.

It was built in two passes, and both are still in the repo:

• reference/ — the original single-file web app: one HTML file, vanilla JS, no build step. It is frozen. It remains the authority on behaviour and on the combo data, and the React port is checked against it.
• src/ — the current app: React, TypeScript, Vite, wrapped with Capacitor.

Running it

Needs Node, a JDK, and the Android SDK. The toolchain script sets up the SDK side on a Debian/Ubuntu machine:

./scripts/install-android-toolchain.sh   # JDK 21, cmdline-tools, platform-tools
npm install

Then, with a phone connected and USB debugging on:

npm run apk          # vite build, cap sync, gradle assembleDebug
npm run install:apk  # adb install -r
npm run device:launch

Or just work in a browser, which is where most of the UI was built:

npm run dev          # http://localhost:5173

Everything else

Command
npm test	The domain suite
npm run typecheck	tsc --noEmit
npm run extract:data	Regenerate the combo table from reference/
npm run icon	Redraw the launcher icon
npm run apk:phase1	Build the old wrapper instead of the React app

How it's put together

reference/       the original app. Frozen: the behaviour and data spec
src/domain/      pure logic, no React, fully tested
  raw.ts         GENERATED — the 159-row combo table
  labels.ts      GENERATED — control labels, groups, contexts
  rules.ts       GENERATED — the nine rules and the pad map
  entries.ts     derives Entry[] from the raw table
  layers.ts      which combos exist for a context and held modifiers
  drill.ts       decks, Leitner boxes, answer checking, card selection
  search.ts      the Find matcher
  storage.ts     the persisted blob and backup parsing
  format.ts      ids to printed words
src/ui/          React. Panel, the four screens, sheets, drill reducer
android/         the Capacitor project
scripts/         toolchain, data extraction, icon, device helpers

The split is deliberate: everything in src/domain/ is pure and has no React in it, so the interesting logic is testable without rendering anything. The UI layer decides what a gesture means; the domain decides what is true.

Things worth knowing if you're reading the code

The combo table is never typed by hand. scripts/extract-reference-data.mjs lifts it out of reference/index.html, evaluating only pure-data declarations in a vm with no DOM, and writes raw.ts, labels.ts and rules.ts. Re-run it after editing the reference; don't edit those three files. Retyping 159 rows is exactly where silent errors would creep in.

Two strings are load-bearing. Entry.id (shift>p1@S#FIX VEL) and STORAGE_KEY (sp404mk2-layers-v1) are unchanged from the original app, so progress earned in the old version is picked up by this one rather than orphaned. There's a test that parses a payload copied verbatim off a phone.

Multitouch is the whole point of the Drill input. Answering means holding two or three controls at once, so Panel tracks pointers per pointerId and grades when the last finger lifts. Two things make it work and are easy to delete by accident: touch-action: none on the panel, without which the browser claims the second finger as a pinch; and listening for pointerup on the window, because fingers routinely lift outside the key they went down on.

The domain is pure so it can be tested. The original mutated module-level state and called Math.random() inline. Here, boxes go in and new boxes come out, and the random source is injected — which is what made the card selection testable, and immediately surfaced a real bug in the weighted pick.

CLAUDE.md holds the fuller engineering notes, including a number of Android-specific traps that cost real time.

Design

The look follows Teenage Engineering's EP-133 manual: flat fills, heavy outlines, hard zero-blur shadows, one orange accent that means exactly one thing (this control is live), and monospaced technical annotation. The panel is laid out from the hardware — the control groups carry the same silkscreen captions as the device, and the screen is a circular housing behind a rectangular LCD.

Type is Space Grotesk and Space Mono, self-hosted so the app works with no network.

Data

The combo data is derived from the SP-404MK2 reference manual (v5.50): control names, short labels, one-line descriptions, and page numbers for looking things up. Roland owns the device, its manual and its trademarks; this is an unofficial tool and has nothing to do with them.

Licence

MIT — see LICENSE.

The bundled fonts are under the SIL Open Font License, with their licence texts in public/fonts/.
